Product line
ARTIFICIAL SOLAR LIGHTING XELIOS
Features
This lighting unit can faithfully reproduce natural sunlight. By replacing the spectral glass filter, you can easily get an appropriate artificial sunlight that suits your needs. We are proud of our track record of over 40 years and We provide reliability and high quality light.
A type filter ： VIS (370 ~ 780nm)
B type filter ： UV＋VIS (300 ~ 780nm)
E type filter ： UV＋VIS＋IR (350 ~ 2500nm)
* Diffuser specifications (F type) are also available for each filter.
Light source
Xe lamp ： SET-140F （Ave operation time：Approx 2000Hs)
Xe lamp ： SET-500F （Ave operation time：Approx1500Hs)
Main uses
Color evaluation/toning
Bio/animal/plant reaction test
Camera/smartphone image quality design/evaluation
Automobile paint : Surface inspection and evaluation
Automotive systems : Reflection/glare testing/evaluation of the displays, etc.
Specifications XG-100
Specifications XG-500
Light distribution (XG-100 series）
.png)
Light distribution (XG-500 series）
Features
Reproduces the irradiance of midsummer sunlight of 1000w/m2 or illuminance of 100,000LX. No doubt that it's an optimistic light for solar testing of your products. This is a unique and high quality product made by SELIC, which has a proven track record of manufacturing and selling solar simulators for over 20 years.
Light source
Xe lamp ： SET-140F （Ave operation time：Approx 2000Hs)
Xe lamp ： SET-500F （Ave operation time：Approx1500Hs)
Main uses
Temperature rise test
Heat shielding test for films, etc.
Weathering test
Heat resistance test
Automotive component reliability test (ADAS Lidar sensor)
Solar cell / perovskite evaluation
Smartphone visibility test
Camera backlight evaluation
XELIOS NEXT MODEL：LE-100FD55
HIGH ILLUMINANCE LED ARITIFICIAL SOLAR ILLUMINATION LAMPS
Features
This is an LED version of that artificial solar lighting, adding a new appeal to LED's most important features: long life and low running costs. Of course, in addition to the high color rendering of the original artificial solar lighting, we have added even higher illuminance.
Light source
Lamp type ： LED
Main uses
Color evaluation/toning
Camera/smartphone image quality design/evaluation
Surface inspection and evaluation of automobile paint, etc.

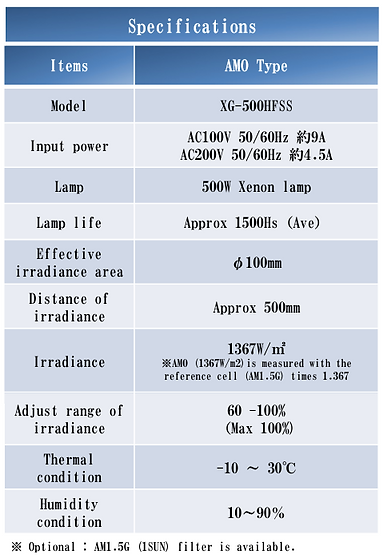

AM0 SPACE SOLAR ILLUMINATOR MODEL：XC-500HFSS
Features
Selic Ltd. newly develops and releases AM0 light source. ISO15387 (1367w/m2) was achieved using an artificial solar lighting having a proven track record of 40 years. This is a compact and extremely easy-to-use model made by combining the new AM0 filter (type: HF filter) and super spot type technology.
Light source
Xe lamp ： SET-500F （Ave operation time：Approx1500Hs)
Main uses
Solar irradiation test on parts for artificial satellites, etc.
*Space PV
*Temperature rise test
*Deterioration test
（製造元：セリック株式会社）
COMPACT SOLAR SIMULATOR MODEL：XI-05A1V2-L
Features
A small solar simulator for perovskite research and development. Lightweight and mobile design requires no special adjustment or setup, and can be used with household AC100V.
IEC60904-9 ClassAAA（ 80mm × 80mm Uniformity within ±2%)
ClassAAB（100mm × 100mm Uniformity within ±5%)
ClassAAC（156mm × 156mm Uniformity within ±10%)
Light source
Xe lamp ： SET-501-Cont （Ave operation time：Approx1000Hs)
Perovskite research & development and manufacturing
PV research & development
Weather resistance testing of products, films, etc.
For automotive ADAS research & development
For Lidar sensor development
Main uses
300～1200nm
SOLAR SIMULATOR （Xe lamp type □156mm～□400mm) AM0 Available
AM0・Test chamber are available to be discussed.
Features
This is a solar simulator made by SELIC, which has been manufactured and sold for over 20 years and is one of the most well-known in the industry.It has overwhelming stability, high quality, space saving, simple operation with a touch panel, and efficient cost of ornership.
JIS C8904-9 / IEC60904-9 ClassAAA
Light source
Xe lamp ： Ave operation time：Approx1000Hs
Main uses
Perovskite research & development and manufacturing
PV research & development
For automotive ADAS research & development
For Lidar sensor development
Options
AM0・Test chamber are available to be discussed.
SOLAR SIMULATOR （Metal halide lamp type □ 400mm～ )
Features
The 2kW metal halide lamp is a light source that we recommend when customers want to illuminate a wide irradiation area.
Compared to xenon lamps, it is lower cost, has a longer life, and can reproduce high energy and highly approximate spectrum.
Depending on the customer's request, it can be used as a simple weather resistance tester by adding a high temperature/humidity test chamber, Peltier data table, etc.
Light source
2kW Metal halide lamp ： Ave operation time：Approx 2000Hs
Main uses
Solar irradiation test
Temperature rise test
Heat resistance test/heat distribution test
Glare test/reflection test etc.
Options
Color conversion filters
Test chamber for Thermal / Humidity
PiPiTORO S-7070
Trademark registration pending
BIG HIT !
FAT CONTENT OF TUNA CAN BE MEASURED
IN A SECOND
PiPi !
Press the tip of the device against the cut cross section of a tuna tail then press the light button to irradiate. We can measure an estimated fat content in the tuna meat by reflection of the near - infrared wavelength spectrum.
-
Waterproof design(IPX6)
-
Topple resistant design
-
Highly visible screen
Everyone can be
The Tuna Meister !
Features
FAT Analyzer S-7041
Features
-
Fatty acid compositions of beef
Oleic asids
Saturated fatty acids
Monounsaturated fatty acids
Others
-
Measurable inside refrigerator
-
Mobile : Li-Ion, 4hs operation
-
Measuring wavelength area : 700 ~1050nm
-
measuring time : 2~3 second
-
Fiber length : 1080mm (+/- 50mm)
-
Light source : 40,000 hs
-
Dimentions : W320 × D233 × H126mm
-
Weight : 4.5 Kg
